Electronic Laser Distance Meter Sensor 40-100M Laser Beam Rangefinder Components

Brand Name : JRT

Model Number : B87A12131

Certification : FDA/ISO9001/CE/FCC/ROHS

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : T/T, Western Union, paypal

Supply Ability : 10000 pcs/day

Delivery Time : 1-3 working days

Packaging Details : neutro-packing

Product Name : Front Reference Point Rangefinder Module

Measurement range : 0.03 ~ 100 meters

Size : 64mm * 40mm * 18mm (without LCD)

Measurement accuracy : about 3mm

Warranty : 1 Year

Weight : about 25g

Contact Now

40-100M Laser Beam Rangefinder Components Electronic Laser Distance Meter Sensor
100M Laser Beam Rangefinder sensor can be use to make Electronic Laser Distance Meters. The Meter has 2mm EXCELLENT ACCURACY - support single measurement , and when you measure indoors and outdoor with precise measurement.

If you use our laser distance meter to OEM your own laser measurers, this following features it can be disigned:

Laser class: Class 2, output power <1mW
Special Features:Electronic angle sensor
Power source: 3.3V lithium battery
Measuring accuracy: ±1/16 inch
Angle range: ±90°
Working range: 393Ft
Max storage: 30 units
Display Style: Backlit LCD
Measuring units: M/In/Ft
Laser type: 620nm - 690nm
Automatically cut off laser: support
Dimension: 64*40*18mm
Recharge : USB Charging

Technical specifications For Laser Distance Meter Sensor

Model Number	B87A
Accuracy	±3 mm
Measuring Unit	mm
Measuring Range (without Reflection)	0.03-100m
Measuring Time	0.125~4 seconds
Laser Class	Class II
Laser Type	620nm-690nm, <1mW
Dimensions	644018mm
Weight	About 25g
Voltage	DC2.0~3.3V
Operating Temperature	0-40 ℃ (32-104 ℉ )
Storage Temperature	-25~60 ℃ (-13~140 ℉)

Electronic Laser Distance Meter Sensor 40-100M Laser Beam Rangefinder Components

Chengdu JRT is the professional manufacturer of laser distance meter sensor, support OEM service.

Product Tags:

small laser distance sensor

electronic distance sensor

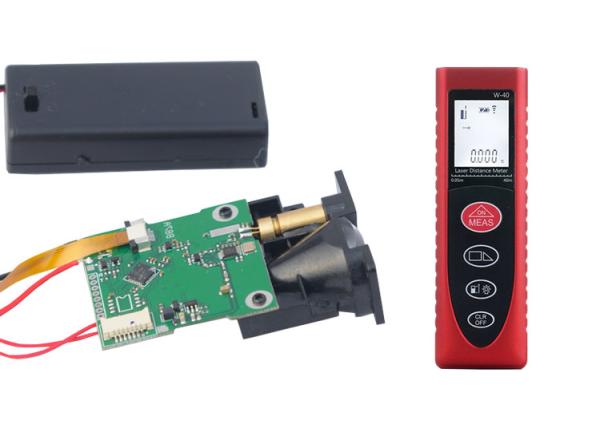

Electronic Laser Distance Meter Sensor 40-100M Laser Beam Rangefinder Components Images
